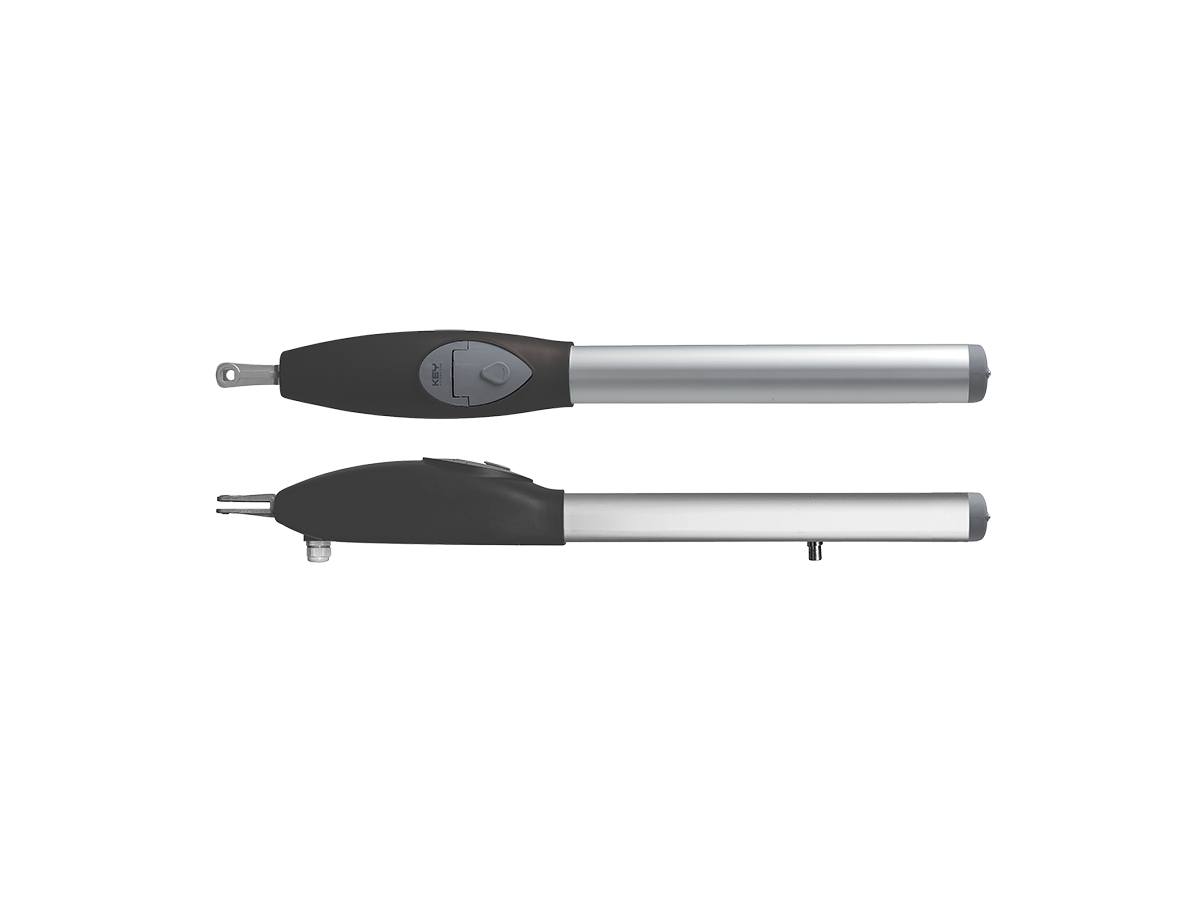

900PS-400FA
Gearmotor for swing gates up to 5 m, 230 Vac, with opening mechanical limit switch
| Product code | 900PS-400FA |
| Speed | 1,4 cm/s |
| Control unit | CT202 |
| Nominal power | 250 W |
| Max leaf weight | 600 kg |
| Type | Linear Motors |
| Category | Gate & Road Barriers |

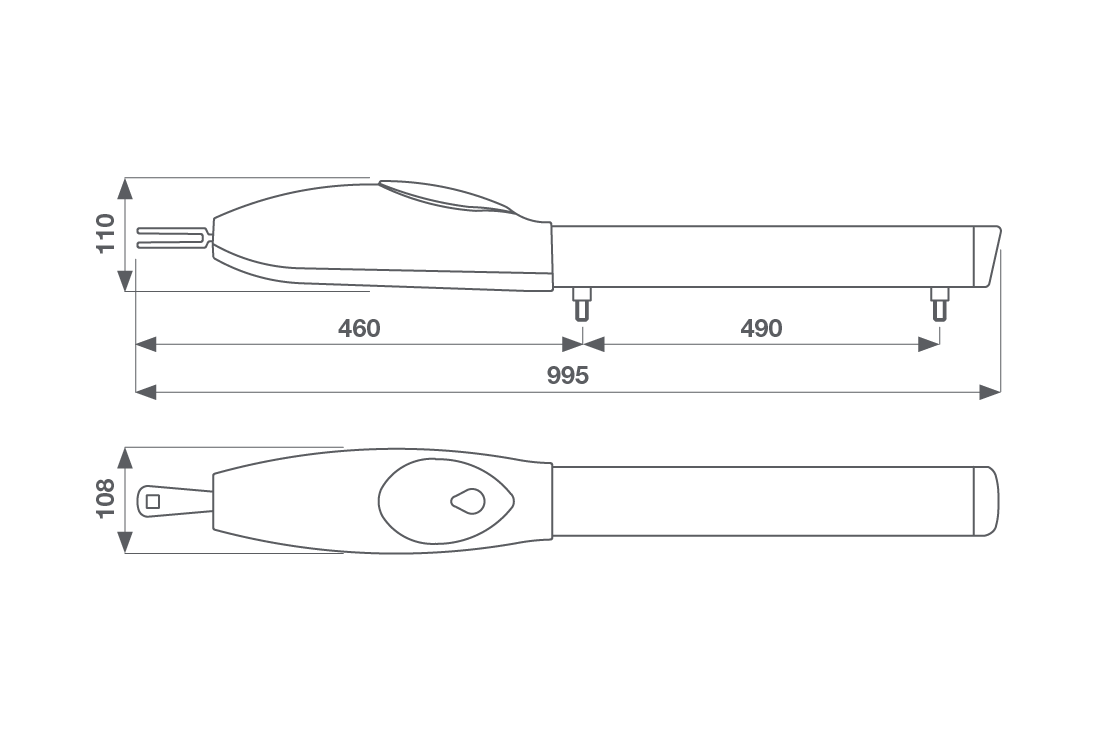

Dimensions
Usage limits
Technical Features
| Speed | cm/s | 1,4 |
| 90° Opening time | s | 35 |
| Force | N | 1800 |
| Duty cycle percentage | % | 30 |
| Cycles/hour | @20°C | 15 |
| Control unit | CT202 | |
| Voltage | Vac | 230 |
| AC Voltage frequency | Hz | 50/60 |
| Nominal current | A | 1,1 |
| Nominal power | W | 250 |
| Thermal protection | °C | 150 |
| Appliance isolation class | I | |
| Degree of protection | IP | 44 |
| Operating temperature | °C | -20 - +55 |
| Max leaf weight | kg | 600 |
| Max leaf length | m | 5 |
| Product dimensions (W - D - H) | mm | 995 - 108 - 110 |
| Packaging dimensions (W - D - H) | mm | 145 - 1020 - 120 |
| Packaging volume | m3 | 0,01775 |
| Packed item weight | kg | 9,5 |
| Items per pallet/box | 25 |
